Self-Excited Vibration Behavior

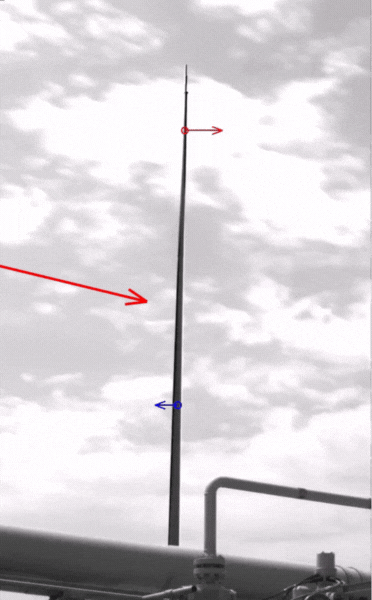

  • During the "Structural Vibration Measurement Service"  carried out at a natural gas transfer station, it was observed that the lightning rod poles in the field were vibrating.

  • During interviews with field personnel, it was learned that the poles swayed quite a lot at certain wind speeds, and some pole tips were even damaged as a result of this shaking.

Physical Background of the Case:

  • The existence of an oscillation situation occurring at certain wind speeds indicates that the problem occurs as a result of the fluid / object relationship.

  • A rod under the influence of laminar flow, "Vortex Eddy currents" are formed with a frequency proportional to the type of fluid (Strouhal number - St), the flow velocity (U) and the rod diameter (L).


  • If this vortex frequency coincides with the structural natural frequencies of the rod / structure / object, a situation called "Self-Excited Vibration" occurs. The vortex continuously feeds energy to the system, causing the oscillation to continue and the structure / object to suffer fatigue damage after a certain period of time.

0.25X Impacts


Mast Height [m]

0.6Hz

1st mode drive

region

2Hz

2nd mode drive

region

10km/h wind speed

15km/h wind speed

Nodal

Point

Vortex Frequency vs Height

Vortex Frequency [Hz]

0.6Hz

1st mode

2Hz

2nd mode


0.6Hz

1st mode


2Hz

2nd mode

  • At low wind speeds, the formation of the 1st mode at a frequency of 0.6 Hz is observed due to the vortex excitation in the lower region of the pole, while at high wind speeds, the formation of the 2nd mode at a frequency of 2 Hz is observed due to the vortex excitation in the upper/middle region of the pole.

  • In order to avoid structural damage due to fatigue, it is recommended that the pole be fixed to the ground with steel ropes.

Conclusion:

  • With structural vibration measurements, vibrations occurring in large static structures (steel construction / reinforced concrete buildings, bridges, towers, poles, etc.) as a result of natural driving mechanisms such as wind or human-induced driving mechanisms such as traffic / industrial work should be compared with ISO 4866, ISO 2631 and DIN 4150 standards and evaluated according to structural damage and / or human comfort conditions.

  • The vibrations occurring in these structures can be continuously monitored live with the "Structural Health Monitoring System".

  • If the amplitude limits are exceeded, detailed structural vibration measurement methods (modal testing, ODS, OMA, Motion Amplification, etc.) should be applied by an expert team and corrective actions should be determined.
